TELESCOPIC CYLINDERS

EXTENDED DURABILITY IN TIGHT SPACES

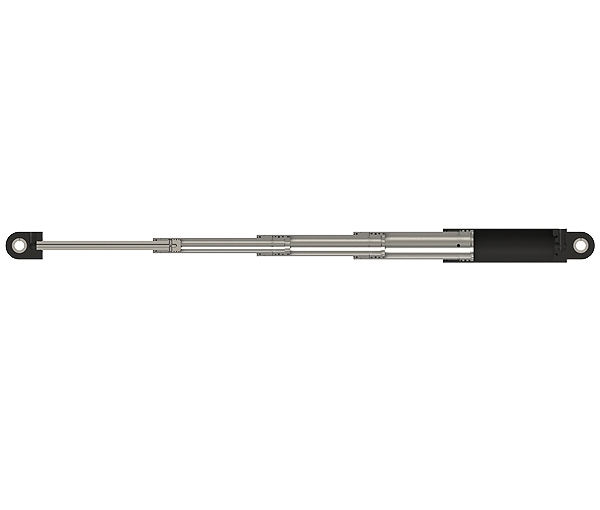

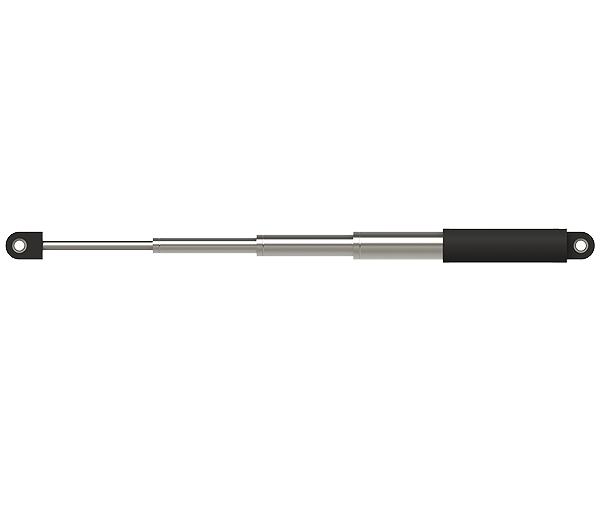

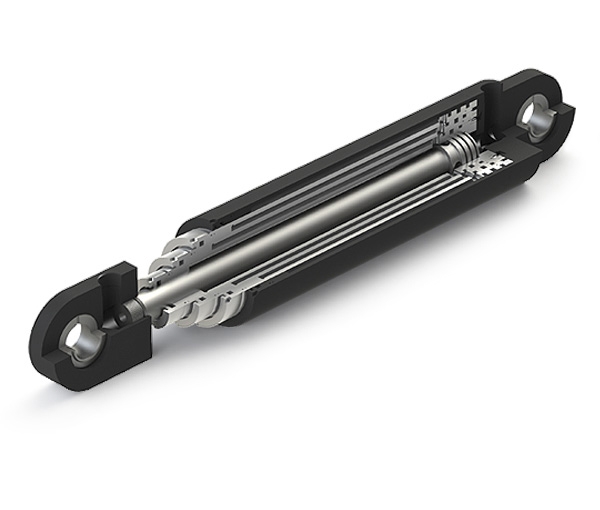

Telescopic cylinders feature a multi-stage rod built of a series of nested steel tubes of progressively smaller diameter. This special hydraulic cylinder design provides exceptional extension from a very compact retracted length.



The ability to extend from a minimal retracted size makes Anker Holth Telescopic Cylinders ideal for applications with space constraints.



Specifications:



  • Bores: 2" up to 30" (50 mm to 762 mm)
  • Strokes: 2' or more to meet size and stroke requirements
  • Sizes: Imperial or Metric
  • Pressure: Up to 5,000 PSI (350 bar)
  • Temperature: -60° F to 600° F (-50° C to 315° C)
  • Material: Steel, Stainless steel, Special alloys
  • Type: Air or Hydraulic
  • Rod Material: Steel with hard chrome plating

Rods are available in Stainless Steel or with CERAMAGTM Ceramic Rod Coating, Nickel/Chrome and other coatings.
