STURDY AND STREAMLINED

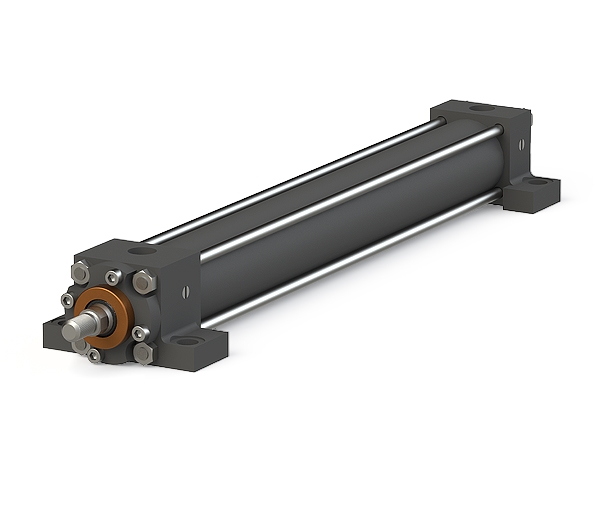

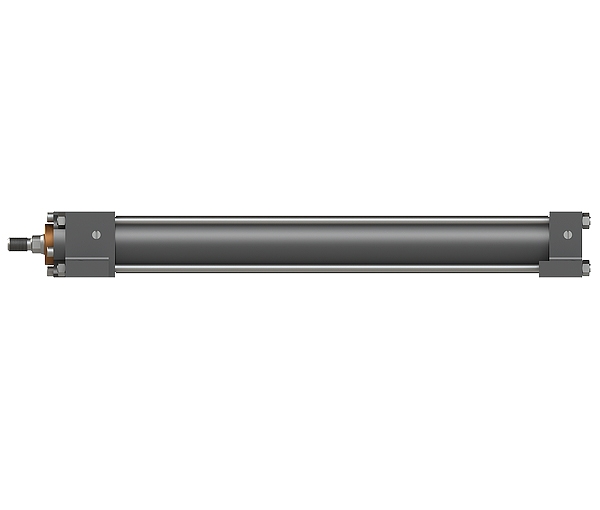

Tie-rod cylinders employ high-strength steel tie-rods to secure the two end caps together and are usually employed in light to medium duty factory applications. Anker Holth tie-rod cylinders are offered in 17 different mounting styles to suit your requirements.

The National Fluid Power Association (NFPA) has provided a range of standard sizes for tie-rod cylinders allowing interchangeability within existing mounting locations.

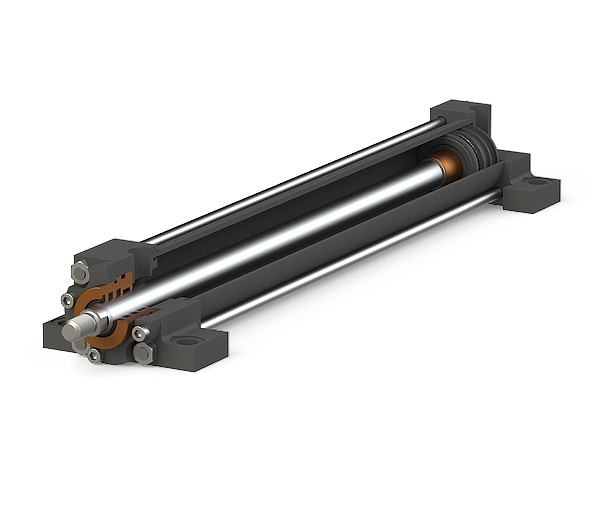

Anker-Holth manufactures an extensive line of tie-rod cylinders in NFPA standard and custom sizes. We offer a superior design featuring metal to metal cushions as standard, instead of floating cushions or cushion seals. This feature ensures that the cushion will last the life of the cylinder.

Specifications:

• Bores: 1" up to 24" (25 mm to 610 mm)
• Strokes: 1/8" up to 20' (3 mm to 6,100 mm)
• Sizes: Imperial or Metric
• Pressure: Up to 5,000 PSI (350 bar)
• Temperature: -60° F to 600° F (-50° C to 315° C)
• Type: Heavy Duty, Air and Hydraulic
• Material: Steel, Stainless Steel, Special Alloys
• Rod Material: Steel with hard chrome plating

Features:

Polyurethane Rod Wipers

Self-Adjusting Packing
